The clamps are designed for dead-ending aerial ADSS cable on access networks when spans
do not exceed 100mm. Different capacities are available to adapt to the cable diameter.
Product code | Description | Min. Breaking Load |
AC-8 | Anchoring clamp 8-10mm | 5000N |
AC-10 | Anchoring clamp 8-12mm | 6000N |
AC-12 | Anchoring clamp 10-14mm | 6000N |
AC-14 | Anchoring clamp 12-16mm | 6000N |
AC-16 | Anchoring clamp 14-18mm | 6000N |

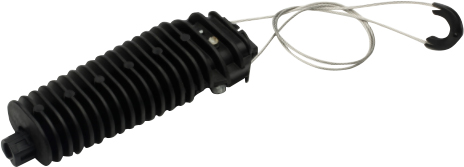

The anchoring clamp has a conical shape, a pair of wedges and a stainless steel bail.
Product code | Capacity (mm) | Min. Breaking Load |
AC-68 | Anchoring clamp 6-9mm | 450N |
Material | ||
Body | Wedge | Bail |
UV protected thermoplastic | UV protected thermoplastic | Stainless steel |
