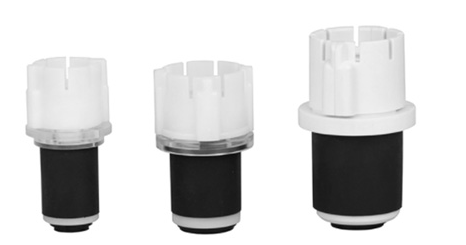

A fiber optic simplex duct plug is used to seal the space between the duct and the cable in a duct.
The plug is divisible so it can be installed after blowing a cable in the duct.
Product code | Description | Duct OD (mm) | Cable Range (mm) |
SDP-25-0509 | 25mm simplex duct plug, 5-9mm | 25 | 5-9 |
SDP-32-0509 | 32mm simplex duct plug, 5-9mm | 32 | 5-9 |
SDP-32-0915 | 32mm simplex duct plug, 9-15mm | 32 | 9-15 |
SDP-40-0509 | 40mm simplex duct plug, 5-9mm | 40 | 5-9 |
SDP-40-0915 | 40mm simplex duct plug, 9-15mm | 40 | 9-15 |
SDP-40-1418 | 40mm simplex duct plug, 14-18mm | 40 | 14-18 |
SDP-40-1823 | 40mm simplex duct plug, 18-21mm | 40 | 18-21-23 |
SDP-50-0915 | 50mm simplex duct plug, 9-15mm | 50 | 9-15 |
SDP-50-1318 | 50mm simplex duct plug, 13-18mm | 50 | 13-18 |
