Features:
• Easy to use, robust, and high mechanical resistance
• Easy installation and connection
• The locking clip secures good connection
• Superior characteristics for jetting microducts into duct while maintaining a high pressure resistance
• Even under difficult circumstances very long blowing distances can be achieved
• Watertight
• Connections are watertight up to 5 meters below water surface
Performance:
1. Blowing Pressure: Between temperatures of -10℃ and +60℃,
all connectors size can be used for blowing operations at pressures up to 16bar.
2. Burst Pressure: ＞ 26bar
3. Gas Tightness:
Leakage at 16 bar gas
pressure: 1ml/minute approx
Leakage at 0.7bar gas
pressure: 0.1ml/minute approx
4. Water ingress: The connectors shall seal against a 6m head of water.
5. Insertion force: 50N max (5kg)
6. Impact: 1J
7. Retention force:
25N min (3&4mm m/d)
55N min (5&6mm m/d)
125N min (7&8mm m/d)
(collect not held in)
125N min (10mm m/d)
125N min (12mm m/d)
155N min (14mm m/d)
180N min (16mm m/d)
200N min (18mm m/d)
300N min (20mm m/d)
800N min (22mm m/d)

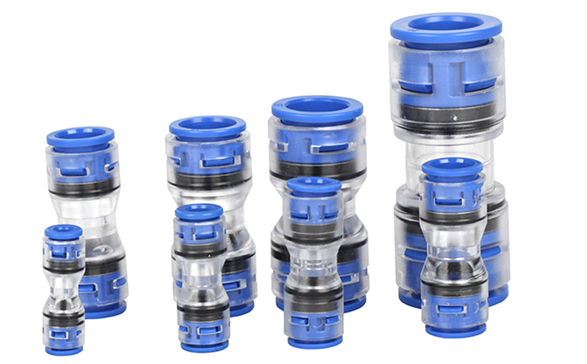

A straight connector is used to connect one micro duct to another micro duct with the same diameter.
Product code | Description | Quantity (PCS)/ CTN |
MSC-3/2.1 | 3mm straight connector, bore 2.1mm | 4500 |
MSC-4/2.1 | 4mm straight connector, bore 2.1mm | 4500 |
MSC-5/3.5 | 5mm straight connector, bore 3.5mm | 4200 |
MSC-6/4 | 6mm straight connector, bore 4mm | 2400 |
MSC-7/3.5 | 7mm straight connector, bore 3.5mm | 2400 |
MSC-7/4 | 7mm straight connector, bore 4mm | 2400 |
MSC-7/5.5 | 7mm straight connector, bore 5.5mm | 2400 |
MSC-8/3.5 | 8mm straight connector, bore 3.5mm | 2400 |
MSC-8/6 | 8mm straight connector, bore 6mm | 2400 |
MSC-8.5/6 | 8.5mm straight connector, bore 6mm | 1680 |
MSC-10/6 | 10mm straight connector, bore 6mm | 1680 |
MSC-10/8 | 10mm straight connector, bore 8mm | 1680 |
MSC-12/8 | 12mm straight connector, bore 8mm | 1200 |
MSC-12/10 | 12mm straight connector, bore 10mm | 1200 |
MSC-12.7/10 | 12.7mm straight connector, bore 10mm | 960 |
MSC-14/10 | 14mm straight connector, bore 10mm | 960 |
MSC-14/12 | 14mm straight connector, bore 12mm | 960 |
MSC-16/12 | 16mm straight connector, bore 12mm | 720 |
MSC-16/13 | 16mm straight connector, bore 13mm | 720 |
MSC-16/14 | 16mm straight connector, bore 14mm | 720 |
MSC-18/12 | 18mm straight connector, bore 12mm | 480 |
MSC-18/14 | 18mm straight connector, bore 14mm | 480 |
MSC-18/16 | 18mm straight connector, bore 16mm | 480 |
MSC-20/16 | 20mm straight connector, bore 16mm | 240 |
MSC-22/18 | 22mm straight connector, bore 18mm | 180 |
MRC-14/12-12/10 | 14-12mm reduction connector, bore 10mm | 960 |
MRC-16/12-12/10 | 16-12mm reduction connector, bore 10mm | 720 |
MRC-16/12-14/10 | 16-14mm reduction connector, bore 10mm | 720 |
MRC-18/14-14/10 | 18-14mm reduction connector, bore 10mm | 480 |
MRC-18/16-16/12 | 18-16mm reduction connector, bore 12mm | 480 |
MRC-20/16-16/12 | 20-16mm reduction connector, bore 12mm | 240 |
MRC-20/16-14/10 | 20-14mm reduction connector, bore 10mm | 240 |
MRC-20/16-12/10 | 20-12mm reduction connector, bore 10mm | 240 |
MRC-22/16-20/16 | 22-20mm reduction connector, bore 16mm | 180 |
MRC-22/18-18/14 | 22-18mm reduction connector, bore 14mm | 180 |
